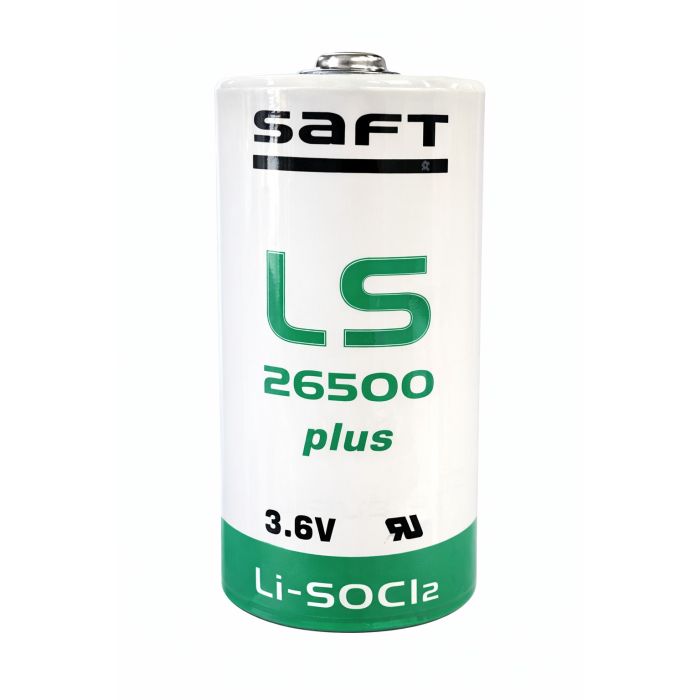

LS26500 Saft Industrial Lithium Cell 3.6v 7700mAh
3.6 volts | 7700 mAh | L: 1.01" H: 1.92" W: 1.01" | 0.14 lbs | 27.72 Wh |
Slightly different to your current battery? Click here for details
|
3.6 Volt 7700mAh (7.7AH) C size Saft Lithium Cell. This lithium battery is used commonly in industrial apprlications.
Product Features
Maintenance Free
BatteryGuy Lithium Batteries do not require any maintenance while in use. Electrolyte levels are calibrated during factory production.
Puncture Resistant Case
The casing of this Lithium battery has been designed to protect the internal components from impacts with sharp objects for extra durability in transport and use.
Corrosion Resistance
Both the terminals and casing are rust resistant so you won't experience loss of power because of faulty connections even in humid conditions.
High Energy Density
The way we make our volt Lithium Batteries means you get an excellent energy per pound of weight ratio.
Optimized Conductivity
The materials we use inside and out have been specially selected for their optimal electrical conductivity so energy loss inside the battery is minimized.
Impact Resistant
All our Lithium Batteries are designed to survive impacts making them tough in transport and tough in use.
Detailed description
3.6 Volt 7300mAh C size Saft Lithium Cell.
BatteryGuy PLC and Industrial Batteries are Manufactured to Meet or Exceed the Quality of the Original Equipment Manufacturer. Only the Highest Grade of Materials are Used to Manufacture our Batteries, with Safety and Performance in Mind. Please be Aware of Online Pirate Companies who Make Their Own Batteries with Insufficient Safety Circuits and Low Grade Materials. Insufficient Circuits and Parts Can Result in a Possible Fire or Explosion in Some Cases.
Commonly Used in Industrial Applications.
---
Brand: Saft

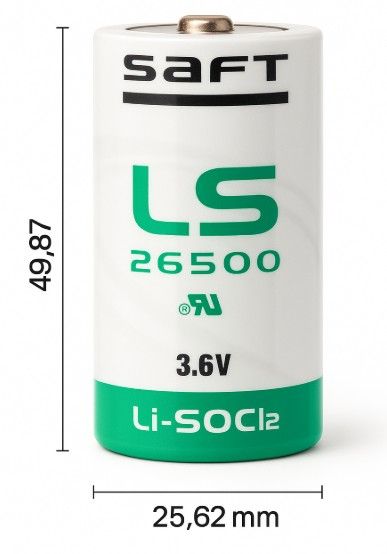

Dimensions: C Cell (1.92" Tall x 1.01" Diameter)
Connector Type: Button Top
Description: 1 Cell Lithium Battery
Shelf Life: Approx. 10 Years
Stable voltage and broad temperature range: (-60° to +85°C)
Current: currents and periodic pulses, typically in the 5-150 mA range.
Construction Features:
- Concentric (“bobbin”) electrodes
- Stainless steel containers
- Un-fused individual cells
- Built-in safety vent for C sized cells
Main Applications:
- Memory back-up
- Real-time clocks
- Utility metering
- Automated meter reading
- Wireless alarms and Security devices
- Emergency locations transmitters beacon
- Electronic toll collection
- Professional electronics
Benefits:
- High operating voltage, stable during most of the application lifetime
- Some of the highest nominal capacities on the market today
- Excellent reliability over extended operating life
- Operating Temperature Range: -60°C/+85°C (-76°F/+185°F)
- Low self-discharge rate (less than 1% after 1 year of storage at + 20°C)
- Excellent resistance to humid environments
- Low magnetic signature
- Good resistance to passivation
- Non-flammable (and non-pressurized at ambient temperature) inorganic (but corrosive) electrolyte
- Less than 1% capacity loss during storage at ambient temperature before use
- Up to 25 years of mass production experience
- Excellent safety records
- Compliant with IEC 86-4 safety standard and EN 50020 intrinsic safety standard
- Underwriters Laboratories (UL) Component Recognition – (File Number MH 12609)
- Compliance with the European directive RoHS
Technical Specifications
Voltage | 3.6 |
Amperage | 7700 mAh |
Dimensions | L: 1.01" , H: 1.01" , W: 1.01" |
Product Code | LS26500 Industrial Lithium |
Availability |
In Stock
Same day shipping available |
Quantity in Stock | 22 |
Weight | 0.14 lbs |
UPC | 00842923104997 |
Documentation
Alerts and Warnings
If your application runs on multiple batteries, make sure to replace all of them at the same time or you will dramatically reduce the lifespan of the new batteries by mixing them with older batteries.
You have to install your replacement batteries in the same original configuration they came out and are required to use your existing hardware and cables to reconnect the replacement batteries when applicable.
It is your responsibility to verify the battery or batteries being ordered match the battery or batteries in your application prior to placing your order. Please check your:
- existing battery dimensions (Length x Width x Height)
- quantity needed to replace all batteries
- voltage and amp hour requirements
Manufacturers may change requirements without notice. BatteryGuy is not responsible for incorrect orders - if you need help, please contact us.
